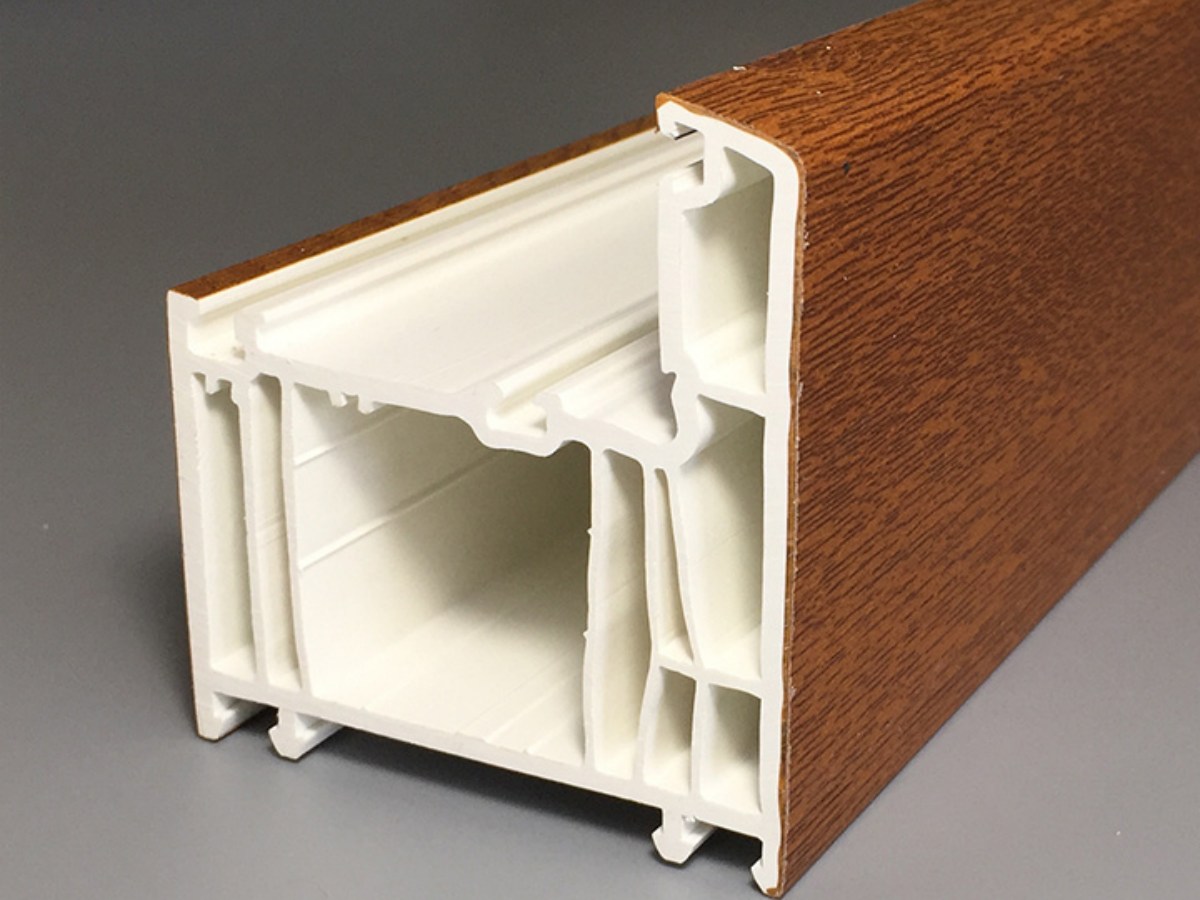

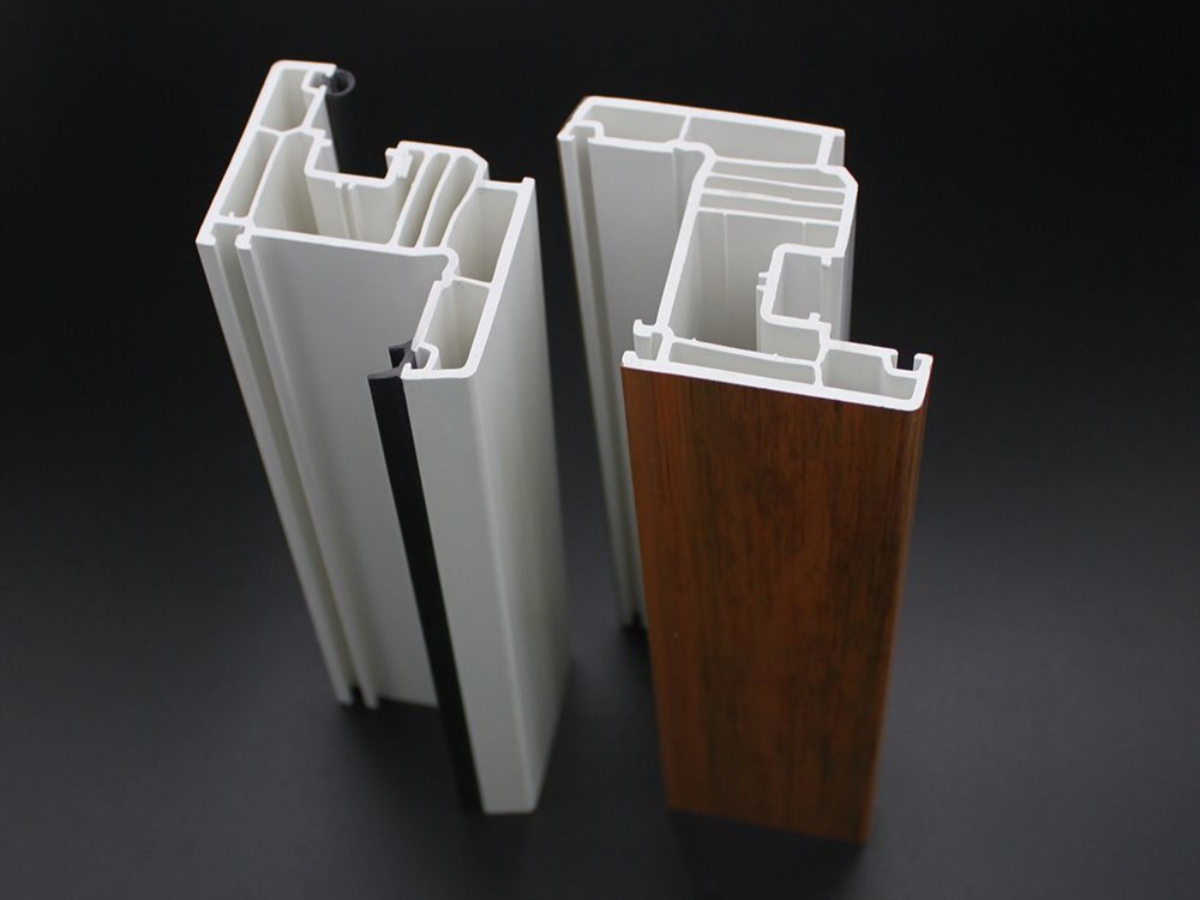

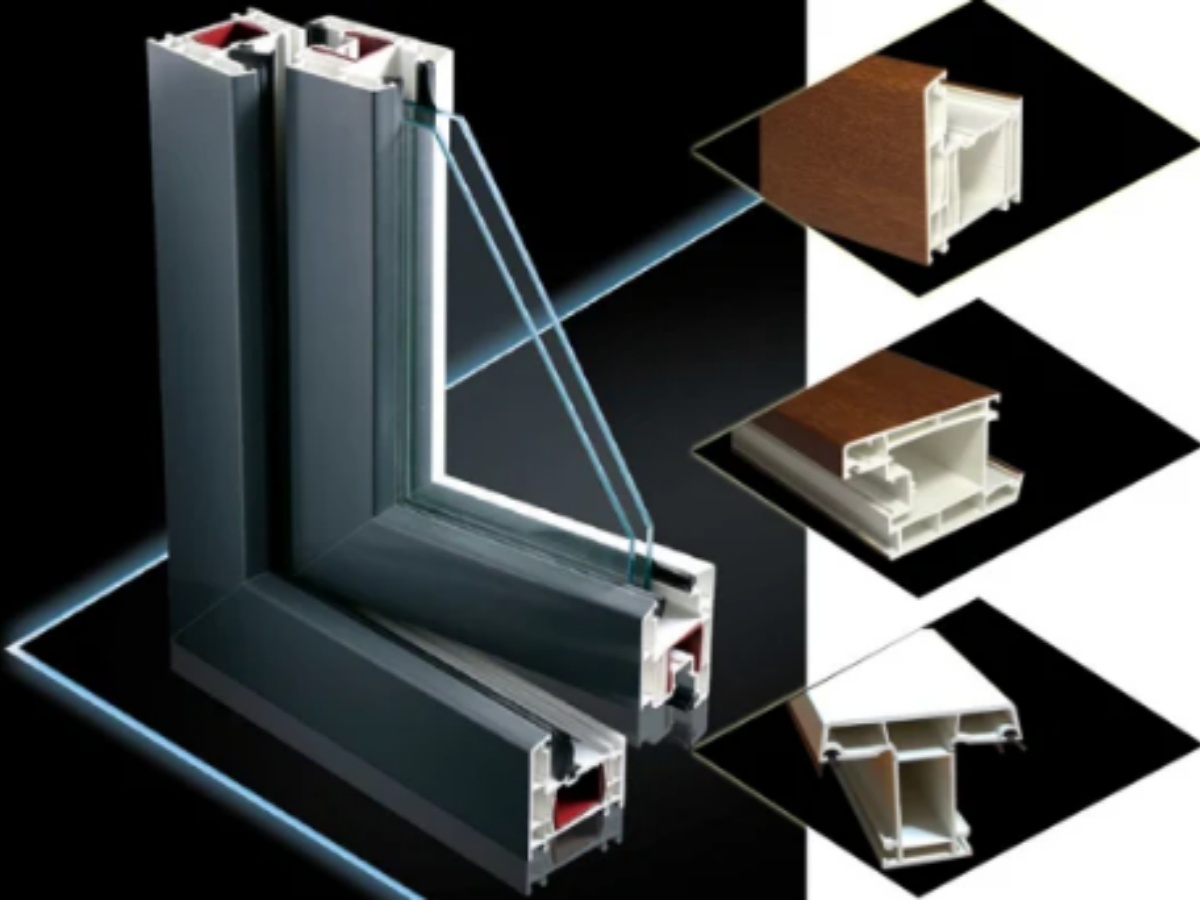

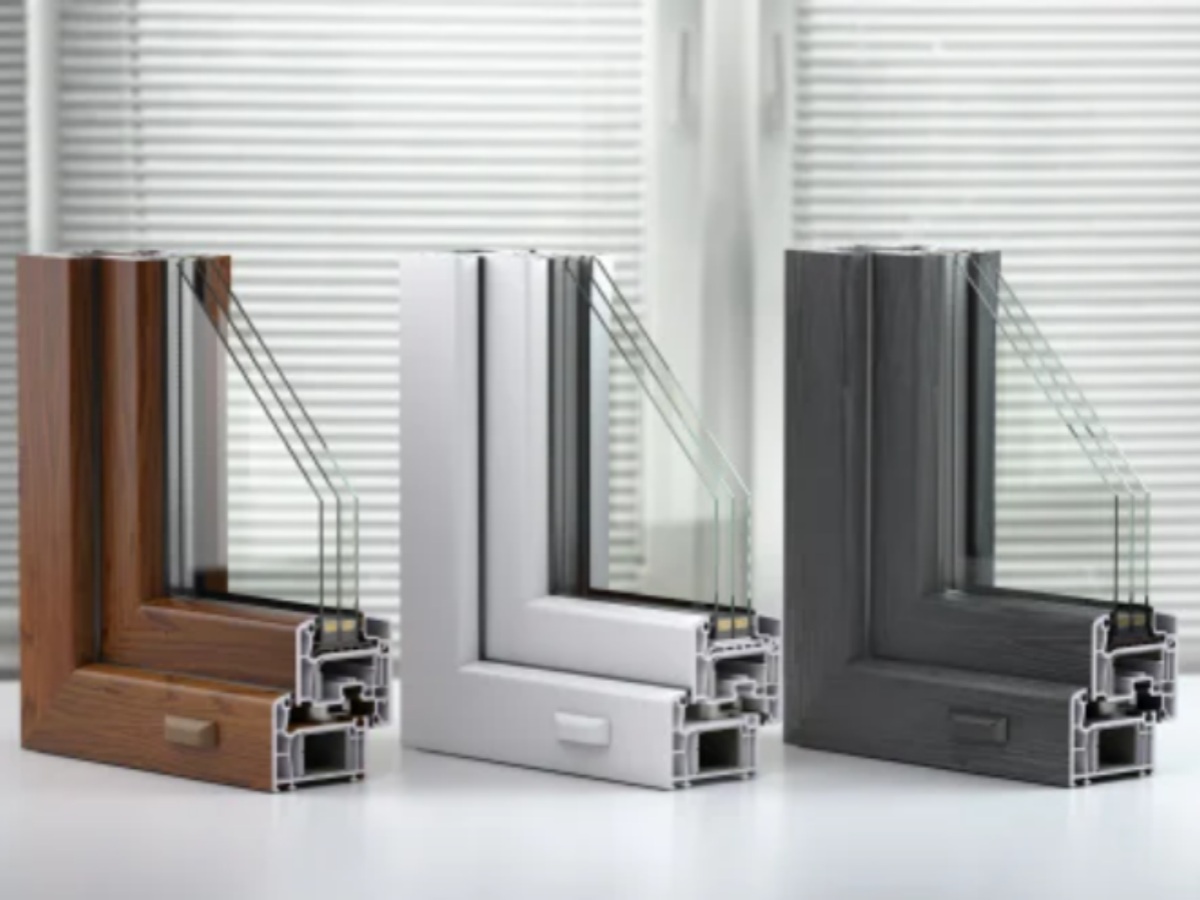

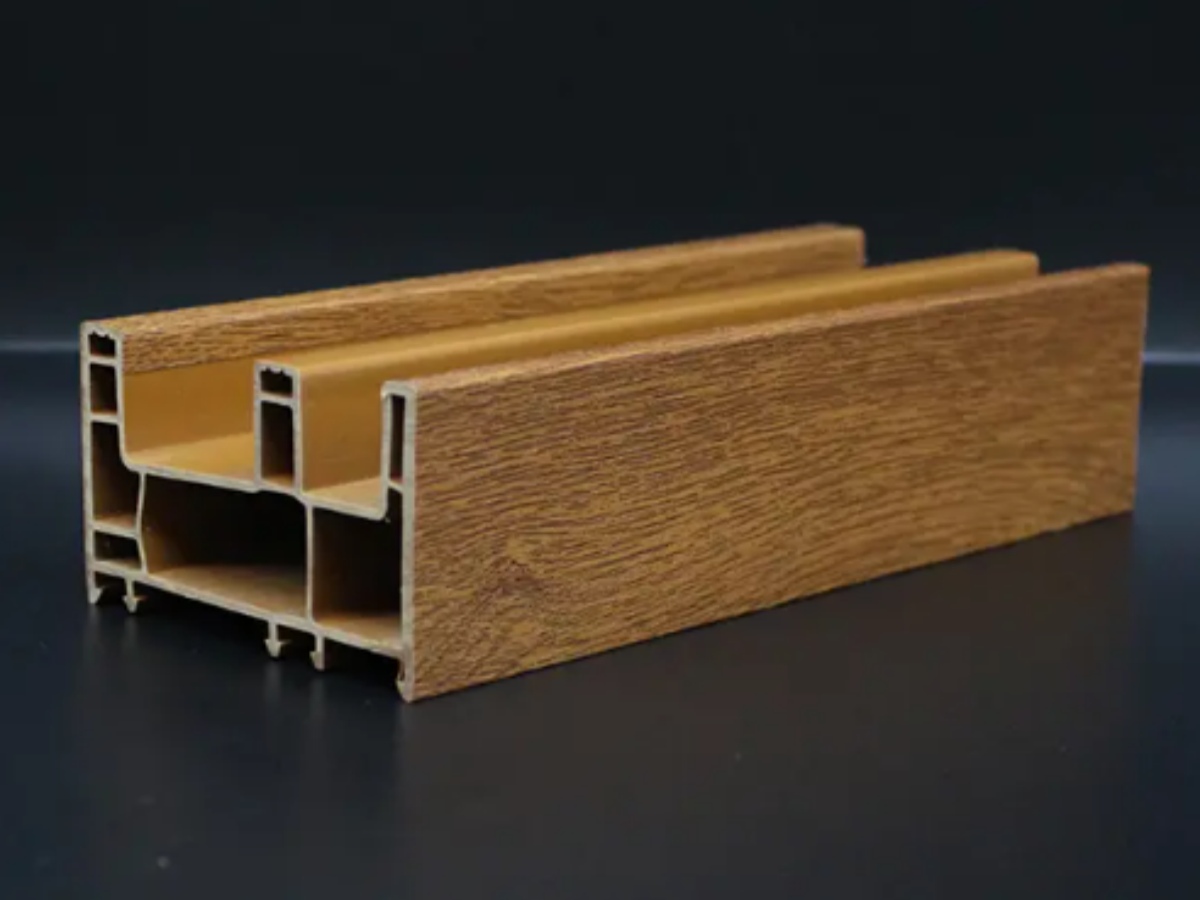

The PVC Plastic Profile Production Line is designed for producing various PVC profiles such as window and door frames, wall panels, skirting boards, cable trunking, and other customized profiles. It adopts advanced extrusion technology and precise temperature control to ensure high efficiency, stable operation, and consistent product quality. Surface texture, color, and finish can all be customized according to customer requirements.
Item No :
SWYXCUsage :
Plastic ExtrusionColor :
Customized ColorScrew type :
Twin Conical ScrewRaw material :
PVC

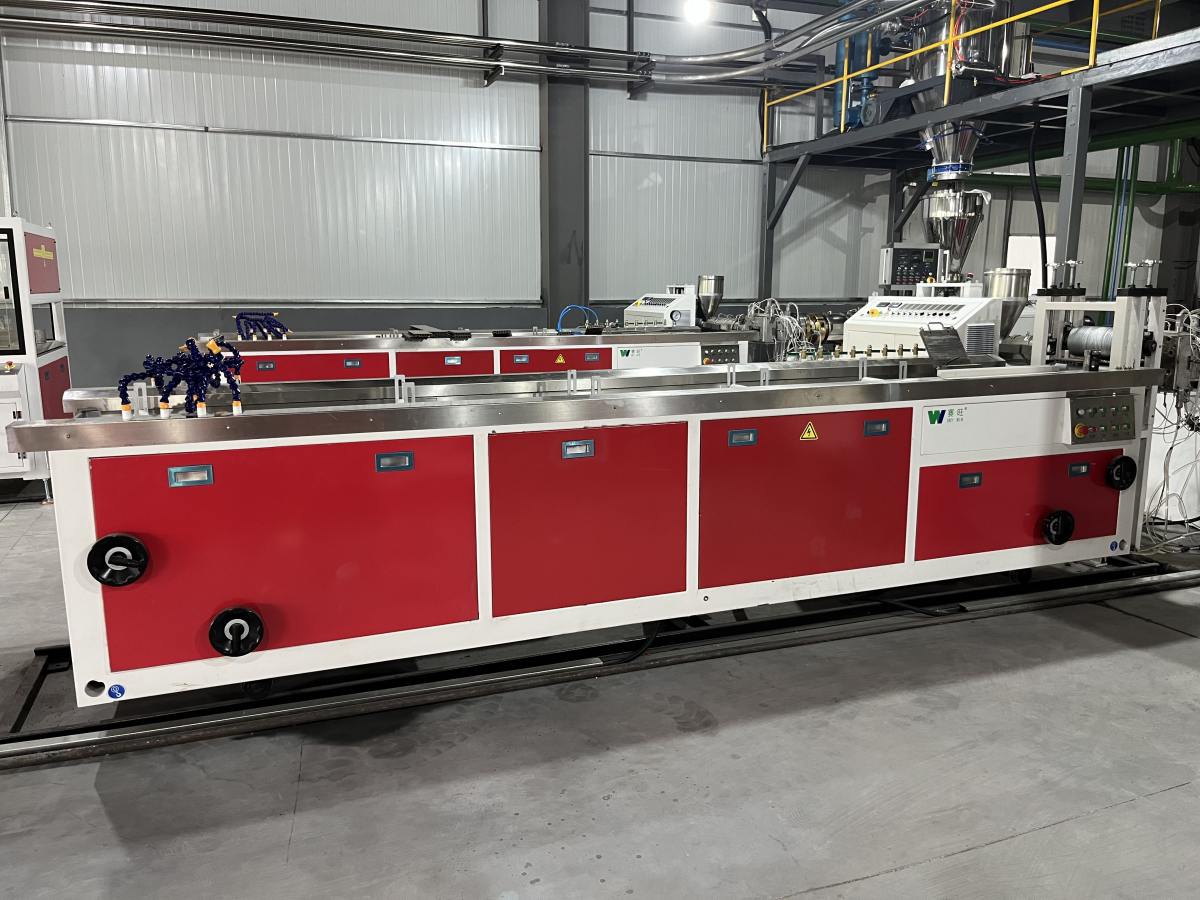

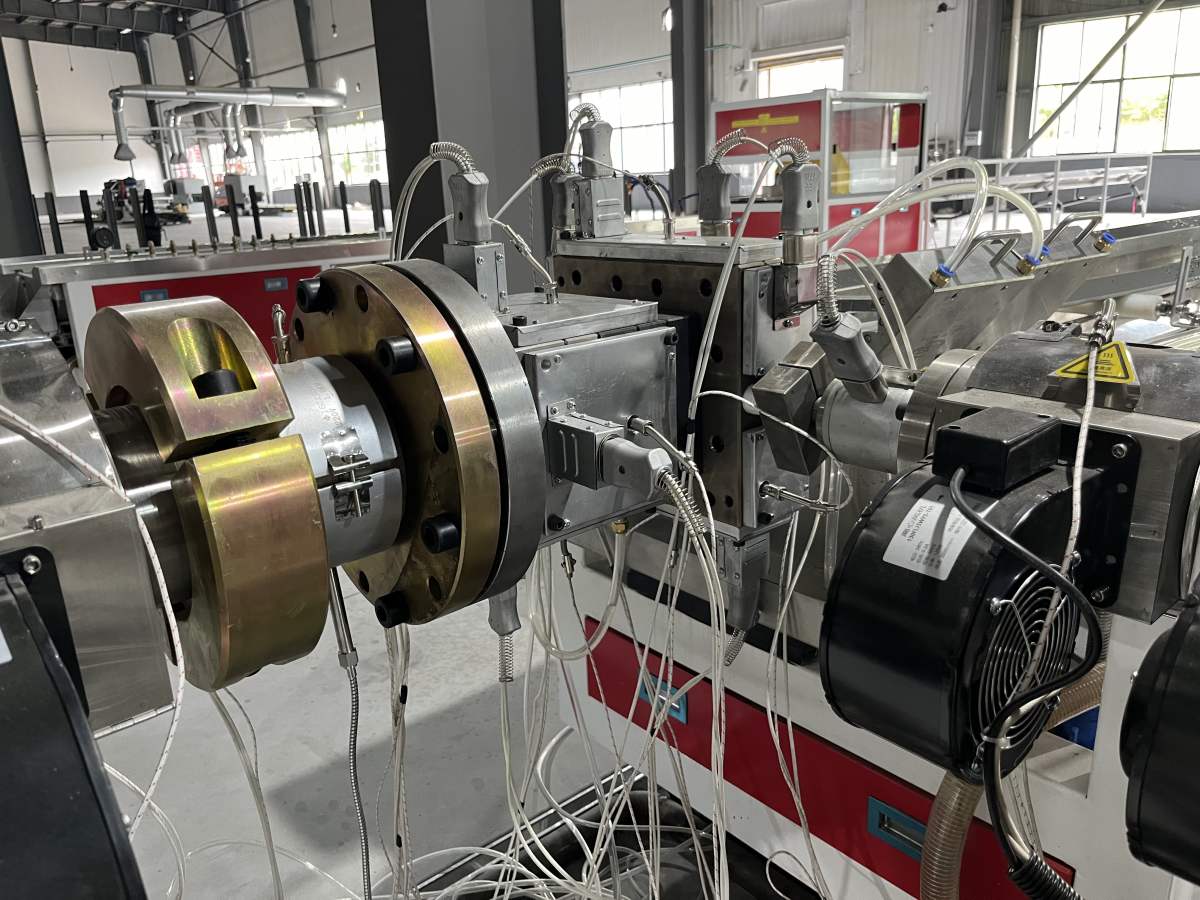

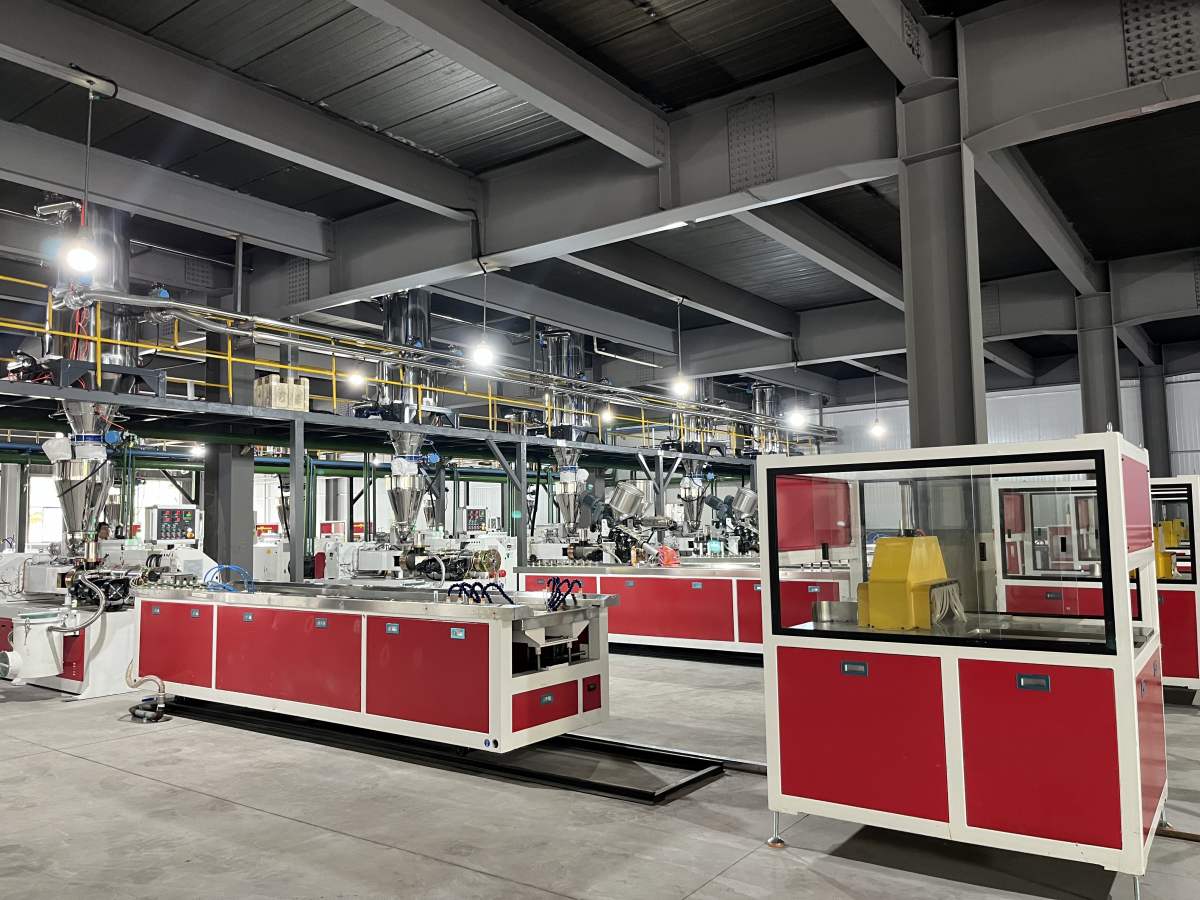

PVC Window and Door Frame Production Line
Main Features
High-Efficiency Twin-Screw Extruder: Ensures excellent material mixing, stable extrusion, and uniform profile quality.
Precision Calibration & Cooling System: Maintains dimensional accuracy and surface finish through vacuum calibration and spray/immersion cooling.
PLC + HMI Intelligent Control: User-friendly touchscreen interface for real-time monitoring, parameter adjustment, and fault diagnosis.
Modular Design with Quick-Change Tooling: Supports rapid mold switching for flexible production of various profile types and sizes.
Energy-Saving & Eco-Friendly: Optimized heating/cooling systems reduce power consumption and minimize environmental impact.
Advantages:

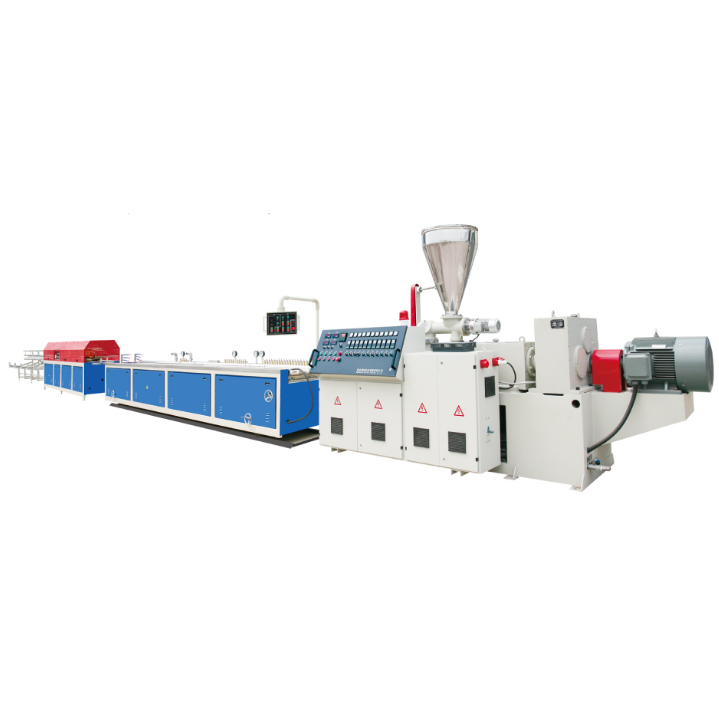

SWMSX PVC-Wood Unit Board Door Extrusion Line Specifications Overview
|
Machine Type |
Screw Diameter (mm) |
Main motor power/heating power (kw) |
Output （KG/H) |
Outline Dimension (mm) |
Total Weight (KG) |
|
SWYXC-3 |
55/110 |
71.6 |
70-150 |
3620*3500*2157 |
8800 |
|
SWYXC-4 |
65/132 |
92.6 |
80-250 |
4235*1520*2450 |
9500 |
|
SWYXC-5 |
80/156 |
122.6 |
250-400 |
4750*1550*2460 |
1100 |
|
SWYXC-6 |
92/188 |
172.5 |
300-750 |
6725*1550*2814 |
13000 |
FAQ
Q1: What types of profiles can this line produce?
A1: It can produce PVC window and door profiles, skirting boards, cable trunking, wall panels, and other custom profiles.
Q2: What raw materials are required?
A2: Mainly PVC resin mixed with additives such as stabilizers, lubricants, and pigments.
Q3: How long is the delivery time?
A3: Usually within 45–60 days after order confirmation, depending on customization.
Q4: Can the production line be customized?
A4: Yes, we can design different extruders, molds, and auxiliary equipment based on your specific requirements.
Q5: What is the power requirement?
A5: The main motor power ranges from 71.6 kW to 172.5 kW, depending on the model (SWYXC-3 to SWYXC-6).
