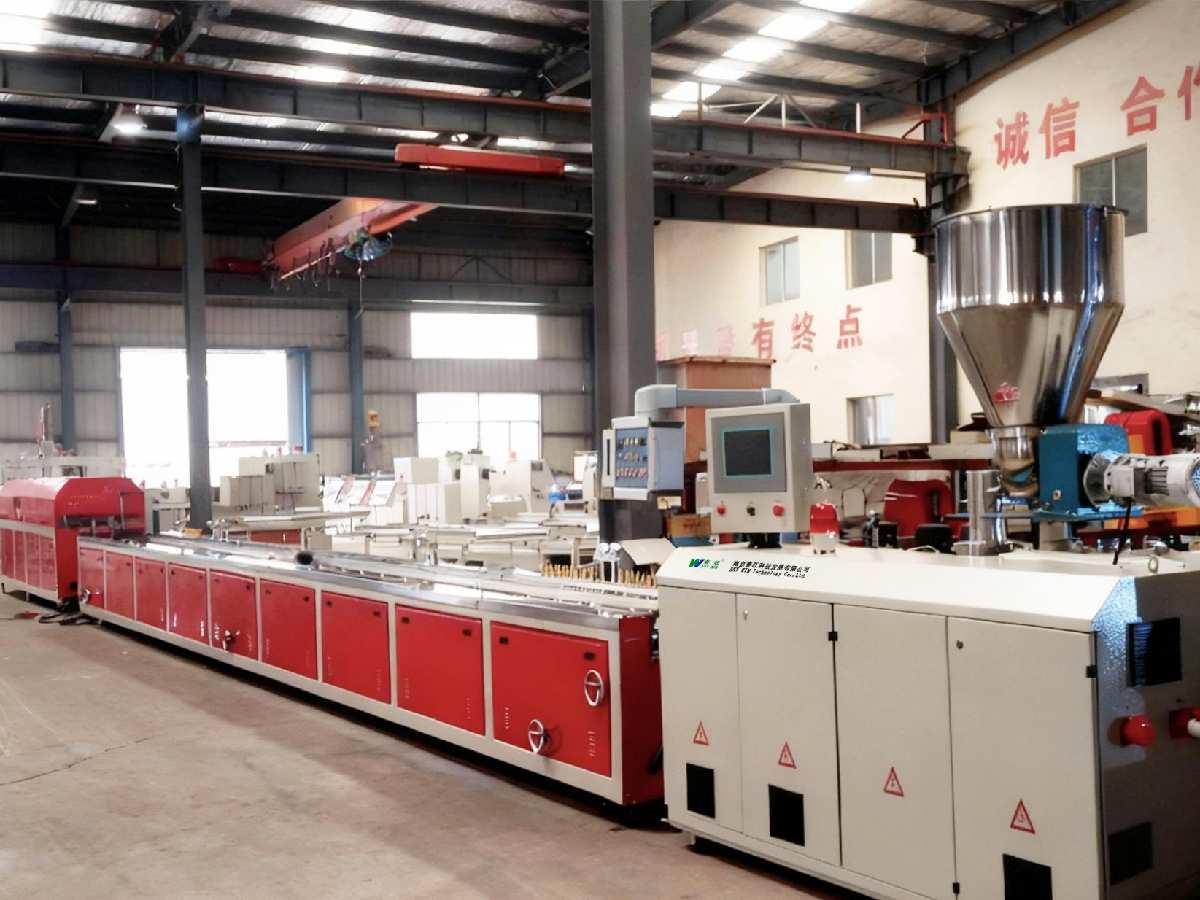

WPC/PVC Inside Wall Panel Extrusion Line

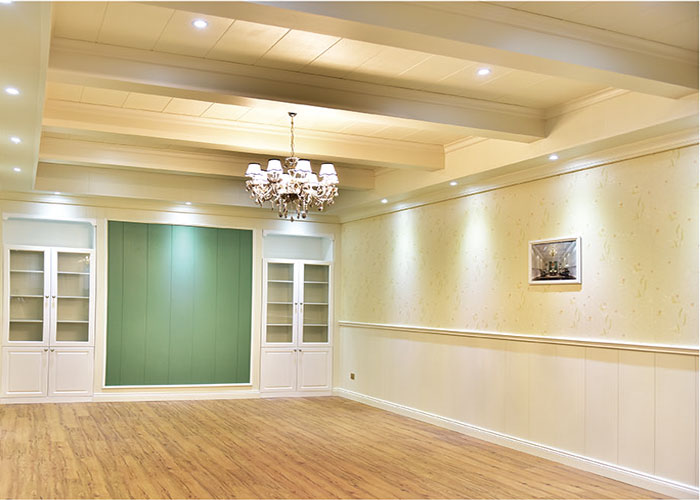

The WPC/PVC Inside Wall Panel Extrusion Line is a highly efficient production system designed for manufacturing high-quality decorative wall panels widely used in interior decoration, office buildings, hotels, residential spaces, and commercial environments. With advanced extrusion technologies and optimized processing, the line ensures stable output, smooth surface quality, and consistent thickness for premium interior finishing products.
Item No :
SWHQBUsage :
Plastic ExtrusionColor :
Customized ColorScrew type :
Twin Conical ScrewRaw material :
PVC+Wood
WPC/PVC Inside Wall Panel Extrusion Line
Main Features
High Production Efficiency: Equipped with a stable conical or parallel twin-screw extruder, ensuring high throughput and continuous production performance.
Wide Material Compatibility: Supports PVC, WPC (PVC+Wood fiber), and other modified compounds for various panel types and textures.
Superior Surface Quality: Panels can be treated with lamination, hot stamping, or printing to achieve wood grain, stone grain, and other decorative effects.
Precision Control System: PLC intelligent control with touch-screen operation for easy monitoring, precise temperature control, and reliable performance.
Energy-Saving Design: Optimized screw and barrel structure enhances plasticizing efficiency and reduces overall energy consumption.
Advantages:
SWHQB WPC/PVC Inside Wall Panel Extrusion Line Specifications Overview
|
Machine Type |
Screw Diameter (mm) |
Product Width (mm) |
Output （KG/H) |
Outline Size (L*W*H) |
Weight (KG) |
|
SWHQB-1 |
51/105 |
240 |
70-120 |
22000*1300*2200 |
4500 |
|
SWHQB-2 |
55/110 |
400 |
100-150 |
23000*1600*2200 |
5000 |
|
SWHQB-3 |
65/132 |
600 |
120-200 |
25000*1600*2200 |
7000 |
|
SWHQB-4 |
80/156 |
800 |
200-350 |
26000*1700*2400 |
9000 |
FAQ
Q1: What materials can the extrusion line process?
A1: The line can process PVC, WPC (PVC + wood), and other modified materials depending on customer requirements.
Q2: What is the thickness and width range of the wall panels?
A2: Typical thickness ranges from 5–12 mm, and widths range from 150–600 mm. Custom sizes can be configured.
Q3: How many operators are required?
A3: Usually 2–3 operators are sufficient to run the full production line, depending on automation level.
Q4: What is the production capacity?
A4: Capacity varies based on machine model. For common models, production output is 200–400 kg/h. Higher capacities are available on request.
Q5: Can the line produce different surface effects?
A5: Yes. Lamination, hot stamping, and printing options are available to achieve wood grain, marble patterns, matte finishes, and other decorative surfaces.
Q6: What is the powering system?
A6: The line uses energy-efficient heating systems, frequency-controlled motors, and PLC control to ensure stable and low-energy operation.
Q7: How long is the installation and commissioning period?
A7: Typically 15–25 days, depending on line configuration and customer site conditions.
Q8: Is the line easy to operate for beginners?
A8: Yes. With PLC intelligent control, touch-screen interface, and clear parameter settings, new operators can quickly learn and manage the process.
Q9: What molds can be used for different panel types?

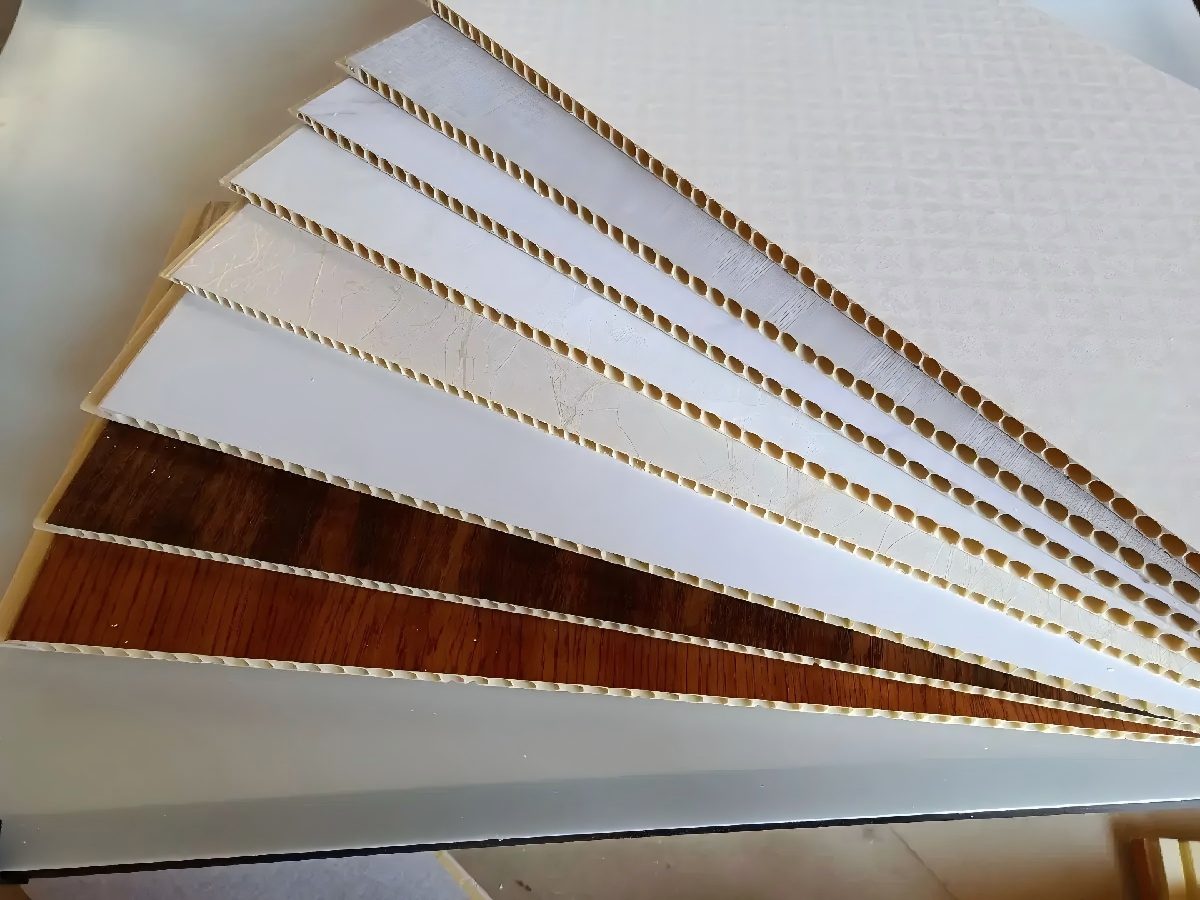

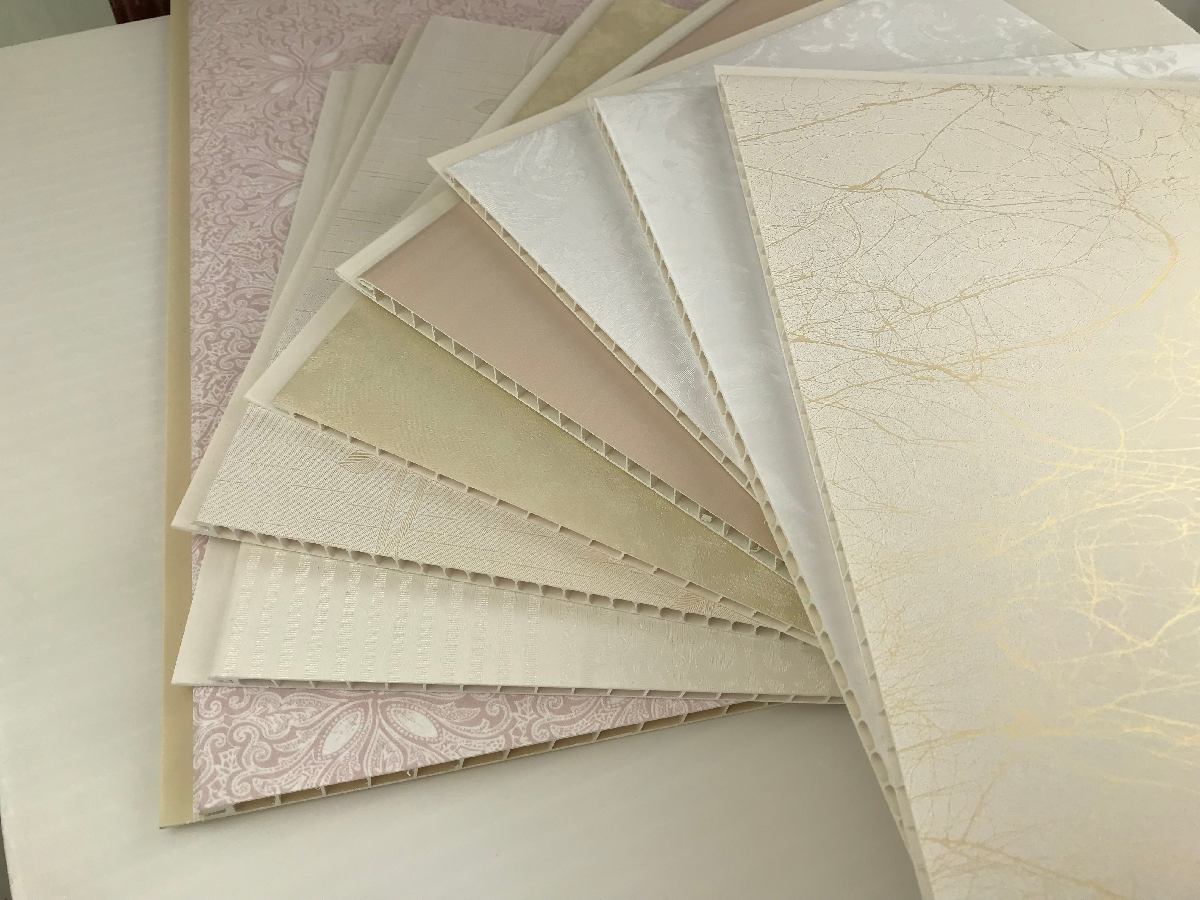

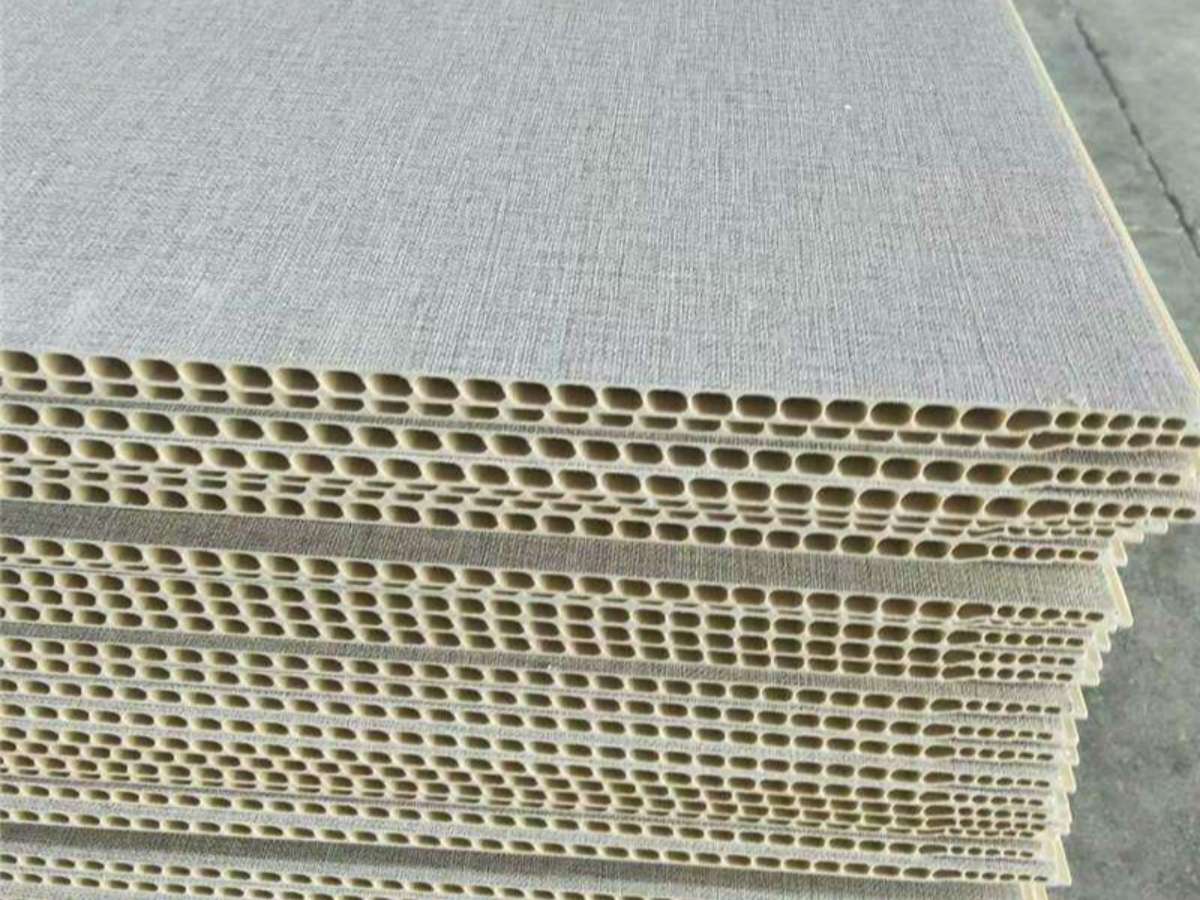

A9: Various molds are available for flat panels, hollow panels, ceiling panels, decorative wall boards, and partition panels.
Q10: Do you provide after-sales service and spare parts?
A10: Yes. We provide on-site installation, technical training, lifetime technical support, and fast spare parts supply.
