The PVC-Wood Unit Board Door Extrusion Line is a state-of-the-art manufacturing solution designed for the high-volume production of a wide range of building and furniture panels. This versatile line specializes in creating solid PVC-Wood unit boards, making it ideal for producing entire door slabs, cabinet panels, and hollow grid panels. With an adjustable width capability from 600mm to 1200mm, it offers unparalleled flexibility to meet diverse market demands without the need for tooling changes.
Item No :
SWMSXUsage :
Plastic ExtrusionColor :
Customized ColorScrew type :
Twin Conical ScrewRaw material :
PVC

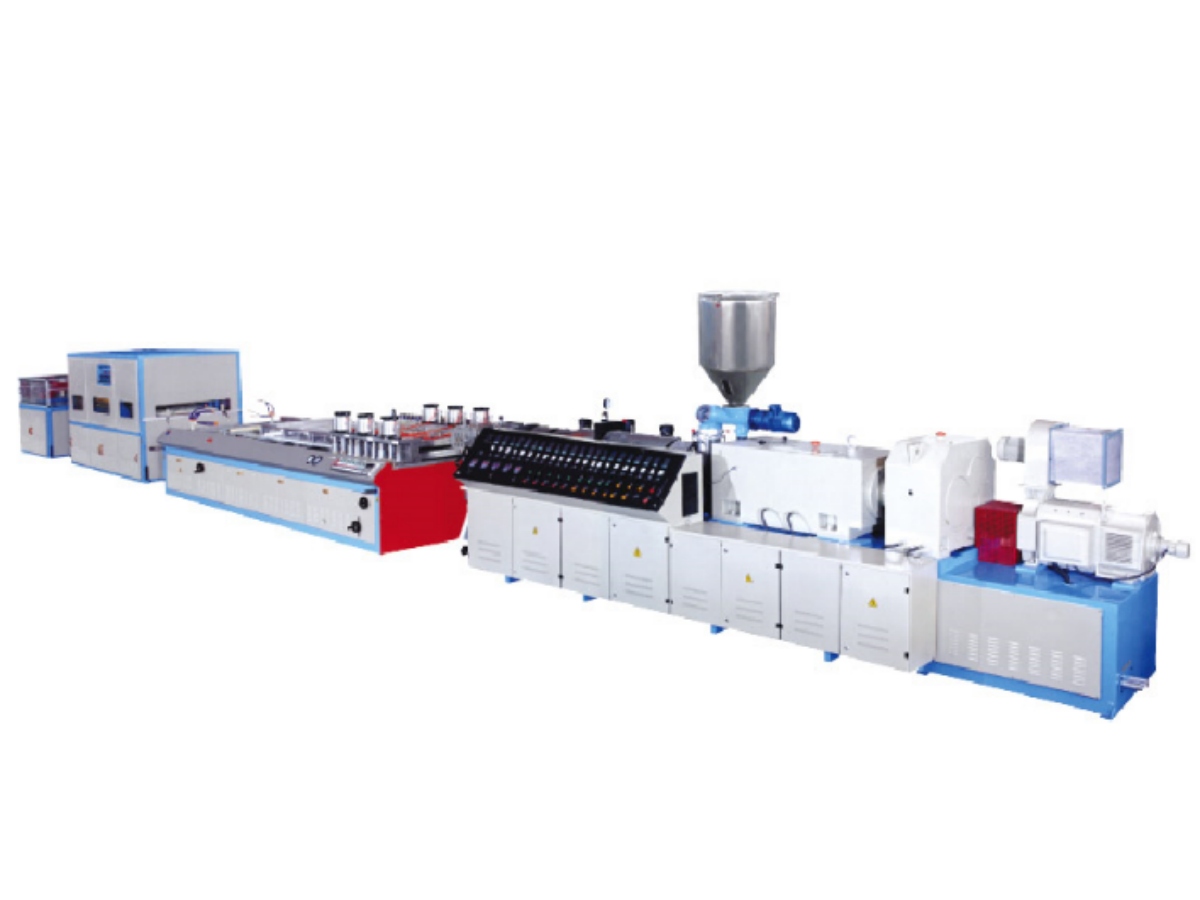

PVC-Wood Unit Board Door Extrusion Line
Main Features
Wide Adjustable Range: Capable of producing panels from 600mm to 1200mm in width, accommodating a vast array of product specifications.

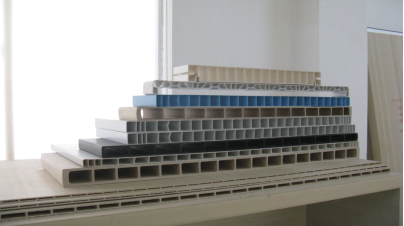

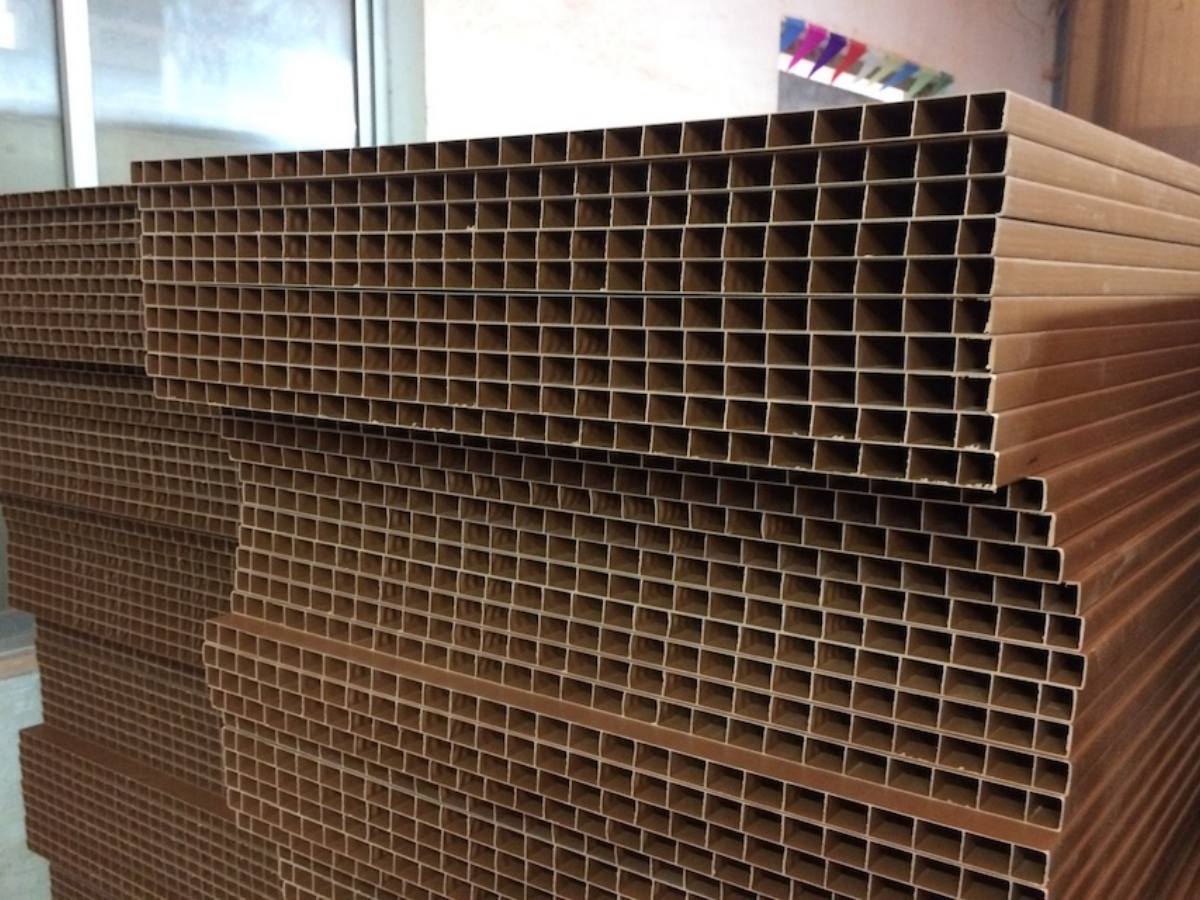

High Versatility: Produces multiple product types, including solid door panels, cabinet boards, and lightweight hollow core panels, all on a single line.
Integrated Co-extrusion: Allows for the simultaneous extrusion of a base material and a different colored or textured surface layer, enhancing the aesthetic appeal and functionality.
Advanced Calibration & Cooling: Ensures precise dimensional stability, excellent surface finish, and high product flatness.
Automated Cutting System: Equipped with a precision flying saw for accurate, programmable length cutting, optimizing material usage and efficiency.
PLC Control System: Features a user-friendly interface for easy operation, recipe management, and monitoring of all production parameters.
Advantages:
SWMSX PVC-Wood Unit Board Door Extrusion Line Specifications Overview
|
Machine Type |
Screw Diameter (mm) |
Main motor power/heating power (kw) |
Output （KG/H) |
Outline Dimension (mm) |
Total Weight (KG) |
|
SWMSX-4 |
80/156 |
129.7 |
250-350 |
21000*1850*2900 |
9400 |
|
SWMSX-5 |
92/188 |
158 |
400-600 |
23000*2200*3100 |
7500 |
FAQ
Q1: What is the primary raw material used?
A1: The line primarily uses a PVC Wood-Plastic Composite (WPC) formulation, which combines PVC resin with wood fiber or flour, creating a durable and versatile material.
Q2: How quickly can the production width be changed?
A2: The width adjustment is a mechanical process that is relatively quick and does not require changing the main extrusion die. The exact changeover time depends on the specific model but is designed for efficiency.
Q3: What is the typical output capacity of this line?
A3:The output varies based on product density, width, and thickness. Please contact our engineering team for a detailed capacity analysis tailored to your specific product mix.
Q4: Can the line produce different surface finishes, like wood grain?
A4: Yes, through the co-extrusion feature, the line can apply a capstock layer with various colors and wood grain patterns directly during the main extrusion process.
Q5: Is this line suitable for producing exterior door panels?
A5: Absolutely. The PVC-Wood composite is inherently waterproof, rot-resistant, and dimensionally stable, making it an excellent choice for both interior and exterior door applications.
