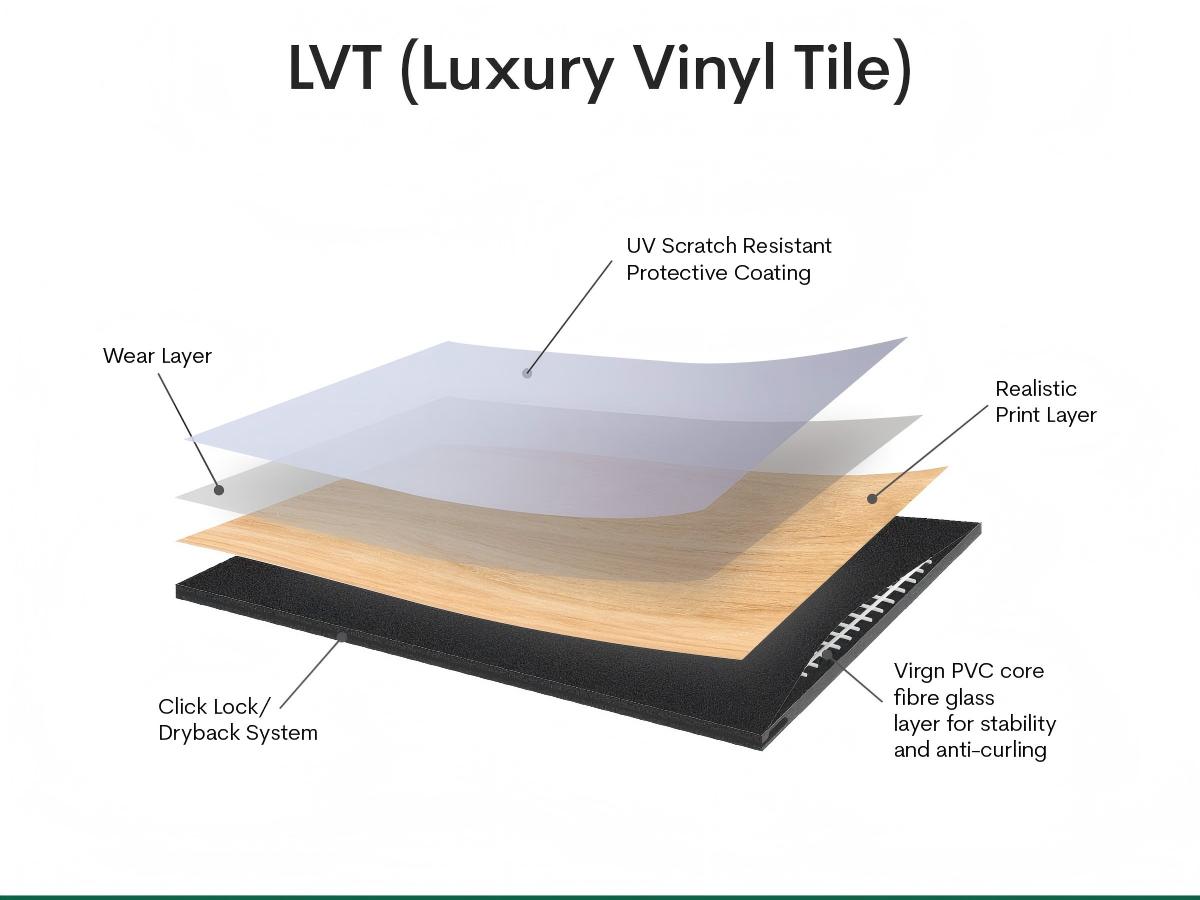

The LVT (Luxury Vinyl Tile) extrusion line is designed for producing high-quality vinyl flooring with superior surface appearance, dimensional stability, and durability. LVT flooring is widely used in residential, commercial, and public spaces thanks to its realistic texture, waterproof performance, and easy maintenance.
This production line combines advanced extrusion, calendering, and lamination technologies to ensure consistent quality and high output with energy-efficient operation.
Item No :
SWLVTUsage :
Plastic ExtrusionColor :
Customized ColorScrew type :
Twin Conical ScrewRaw material :
PVC Resins+CaCo3
LVT Flooring High-speed Extrusion Line
Main Features
High Output and Energy Efficiency – Optimized screw design ensures excellent plasticization and stable extrusion at lower energy consumption.
Excellent Layer Bonding – Multi-roller calender system enables perfect lamination of the base layer, printed film, and wear layer.
Uniform Thickness and Smooth Surface – High-precision T-die and temperature control ensure perfect product flatness and consistent thickness
Flexible Configuration – Optional embossing, online thickness control, and automatic stacking/rolling to meet different production needs.
Advantages:
SWLVT Flooring High-speed Extrusion Line Specifications Overview
|
Machine Type |
Extruder |
Sheet Thickness(mm) |
Sheet Width(mm) |
Main Motor Power(kw) |
Maximum speed of host |
Output(kg/hr) |
|
SWLVT-1 |
80/156 |
0.8-4 |
970-1220 |
75 |
38 |
300-450 |
|
SWLVT-2 |
92/188 |
0.8-4 |
970-1220 |
110 |
38 |
500-700 |
|
SWLVT-3 |
110/220 |
0.8-4 |
970-1220 |
200 |
38 |
800-1200 |
FAQ
Q1: What is the difference between LVT, SPC, and WPC flooring?
A1: LVT: Flexible vinyl flooring with soft and elastic texture, suitable for glue-down or loose lay installation.
SPC: Rigid core vinyl flooring with stone-plastic composition, featuring higher stability and click-lock installation.
WPC: Wood-plastic composite flooring with foamed core, offering better comfort and sound absorption.
Q2: What types of LVT flooring can your extrusion line produce?
A2: Our LVT extrusion lines can produce:
Dry Back LVT (glue-down type)
Loose Lay LVT
LVT Base Sheet for further lamination or click-lock processing
Q3: What raw materials are used in LVT production?
A3: Main ingredients include PVC resin, calcium carbonate, plasticizer, stabilizer, and color masterbatch. Our extruders are optimized for high-filling formulations with stable output.
Q4: What is the difference between an LVT extrusion line and a calendaring line?
A4: Extrusion line: Produces LVT base sheets by plasticizing and extruding PVC compounds, suitable for high-output continuous production.
Calendaring line: More suitable for thinner films and decorative layers.
Our LVT extrusion line can integrate both extrusion and calendering functions for better efficiency.
Q5: What is the delivery time for an LVT extrusion line?
A5: Generally, the production lead time is about 60–90 days after order confirmation, depending on customization requirements.
Q6: What kind of after-sales support do you provide?
A6: We offer installation and commissioning services, operator training, technical guidance, and remote troubleshooting. Spare parts and online support are available throughout the equipment’s lifetime.
