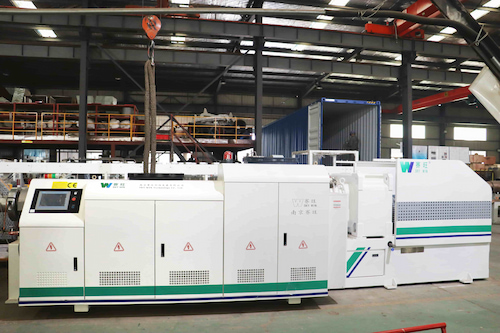

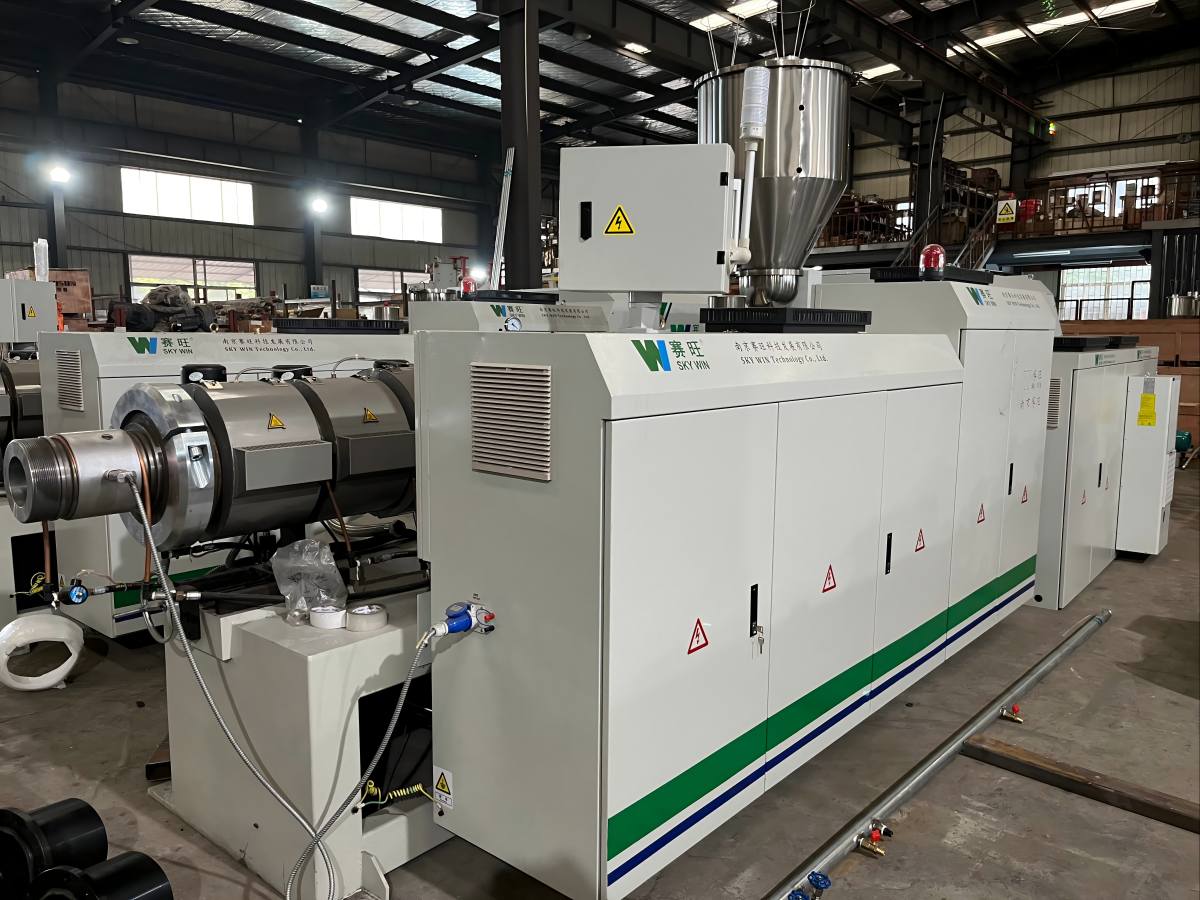

The SPC (Stone Plastic Composite) flooring extruder is the core equipment in rigid vinyl flooring production lines. It is a high-torque conical twin-screw extruder specifically designed for uniform mixing, plasticizing, and continuous extrusion of flooring composite materials.
Item No :
SWDB5Usage :
Plastic ExtrusionColor :
Customized ColorScrew type :
Twin Conical ScrewRaw material :
PVC Resins+CaCo3

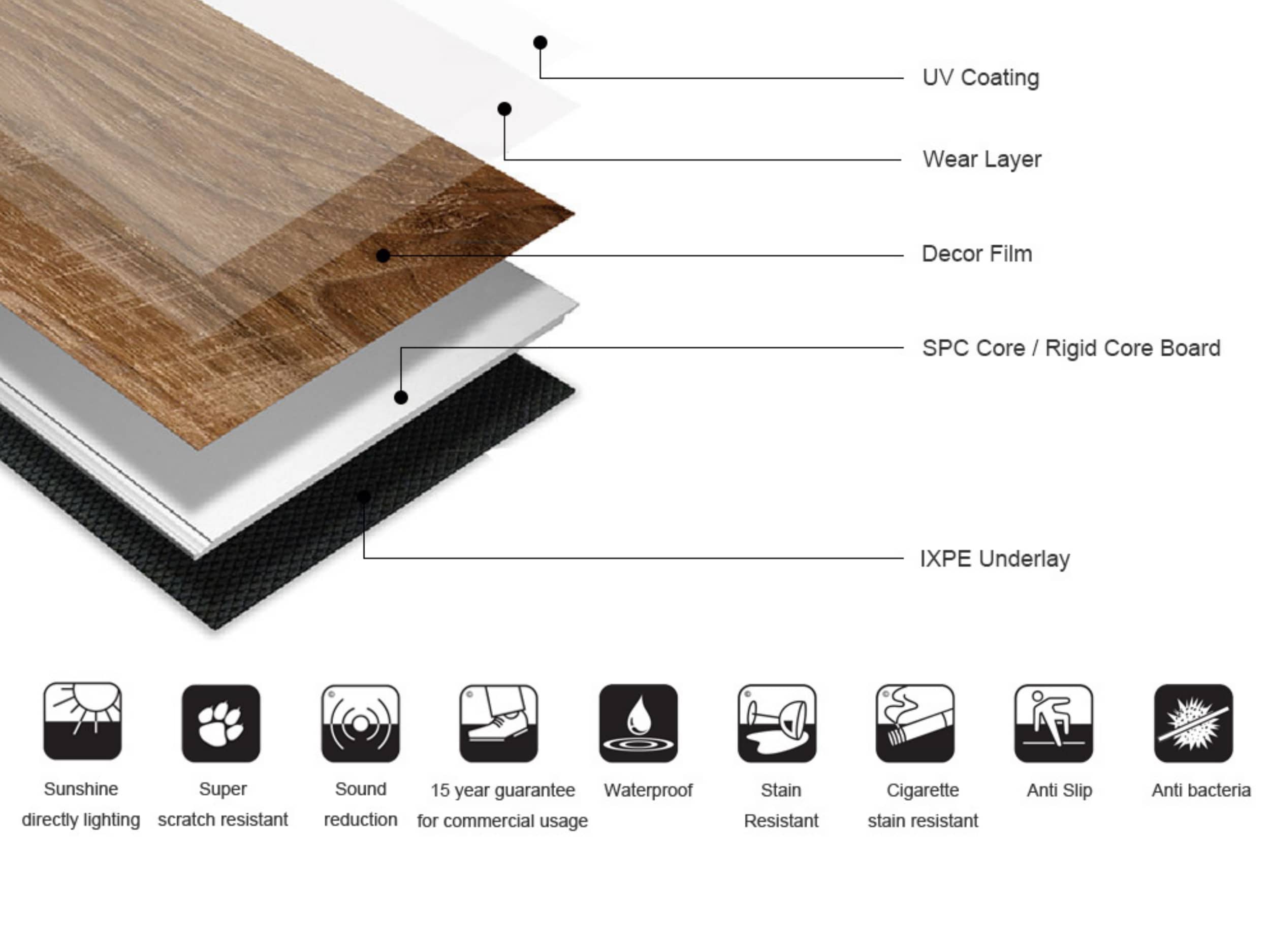

SPC flooring's primary raw materials are calcium carbonate (limestone), polyvinyl chloride (PVC) resin, and stabilizers. It offers exceptional stability, virtually no shrinkage, expansion, or deformation; it also boasts exceptional durability and impact resistance, and is absolutely waterproof.
Advantages:
SWDB5 Series PVC Flooring Extrusion Machine Specifications Overview
|
Machine Type |
Extruder |
Sheet Thickness(mm) |
Sheet Width(mm) |
Main Motor Power(kw) |
Total Power(kw) |
Output(kg/hr) |
|
SWDB5-2 |
92/188 |
1.5-7 |
970-1220 |
90/110 |
270 |
600-800 |
|
SWDB5-3 |
110/220 |
1.5-7 |
970-1220 |
160/200 |
308/376 |
1100-1400 |
|
SWDB5-3-2 |
115/232 |
1.5-7 |
970-1220 |
200 |
400 |
1500-1800 |
|
SWDB5-3--3 |
125/243 |
1.5-7 |
970-1220 |
200 |
420 |
2000-2500 |
|
SWDB5-4 |
132/276 |
1.5-7 |
970-1220 |
280 |
500 |
2500-2900 |
|
SWDB5-5 |
150/300 |
1.5-7 |
970-1220 |
315 |
520 |
2900-3300 |
|
SWDB5-6 |
182/336 |
1.5-7 |
970-1220 |
450 |
650 |
3000-4000 |
FAQ
Q1: What materials can the PVC Flooring extrusion line process?
A1: The PVC Flooring extrusion line is designed to process PVC and related composite materials, which are commonly used in the production of SPC (Stone Plastic Composite) and LVT (Luxury Vinyl Tile) flooring sheets.
Q2: What are the advantages of using SPC/LVT flooring over traditional flooring materials?
A2: SPC/LVT flooring offers several advantages, including water resistance, durability, ease of installation, and a wide range of design options. It is also more environmentally friendly compared to some traditional flooring materials.
Q3: How does the extrusion line ensure the quality of the flooring sheets?
A3: The extrusion line is equipped with advanced control systems and quality monitoring devices that ensure consistent material mixing, precise extrusion, and uniform cooling, resulting in high-quality flooring sheets.
Q4: What is the typical production capacity of the PVC Flooring extrusion line?
A4: The production capacity can vary depending on the specific model and configuration of the extrusion line. However, our lines are designed to handle high-volume production while maintaining quality standards.
Q5: How long does it take to set up and start production with the extrusion line?
A5: Setup time can vary, but with our user-friendly design and comprehensive installation support, most customers are able to start production within a few weeks of receiving the equipment.
Q6: Are there any maintenance requirements for the extrusion line?
A6: Regular maintenance is essential for the longevity and optimal performance of the extrusion line. This includes routine checks of the screws, bearings, and cooling systems, as well as cleaning and lubrication as needed.
Q7: What kind of technical support is available for the extrusion line?
A7: We offer comprehensive technical support, including on-site installation assistance, operator training, and ongoing customer service for troubleshooting and technical inquiries.
Q8: Can the extrusion line be customized to meet specific production needs?
A8: Yes, we can customize the extrusion line to suit your specific production requirements, whether it's adjusting the width of the sheet, modifying the extrusion process, or integrating with existing production lines.
